Discover the world of Unified Standard Threads (USTs), the backbone of countless industrial and mechanical applications. From understanding the different series to mastering design specifications and manufacturing processes, this comprehensive guide will equip you with the knowledge you need to effectively utilize USTs in your projects.
What is a Unified Standard Thread?

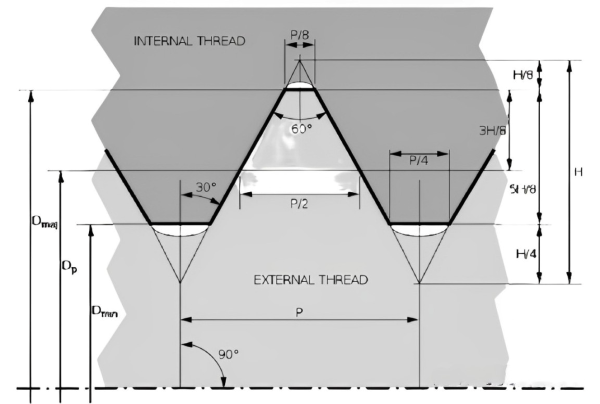

A Unified Standard Thread (UST) is a standardized system of screw threads used in North America and other parts of the world. It’s characterized by its unique thread profile, which is designed to provide a secure and reliable connection between two or more parts. Key characteristics of USTs include:
➡️ 60-degree angle: The angle between the flanks of the thread is 60 degrees.
➡️ Flat crest and root: The top and bottom of the thread are flat.
➡️ American National Standard (ANSI) specification: USTs are defined by ANSI standards, ensuring consistency and interchangeability.
The Purpose and Importance of Standardization
Standardization is crucial in engineering and manufacturing to ensure compatibility, interchangeability, and safety. Unified Standard Threads play a vital role in this by providing a common language for designers, manufacturers, and users. By adhering to the UST standard, businesses can:
➡️ Reduce costs: Avoid the need for custom threads, leading to lower manufacturing expenses.
➡️ Improve efficiency: Streamline production processes by using standardized components.
➡️ Ensure quality: Maintain consistent performance and reliability in threaded connections.
Unified Threads vs. Other Thread Standards
While USTs are widely used, they are not the only thread standard available. Other common thread standards include:
➡️ Metric thread: Used primarily in Europe and other parts of the world.
➡️ Whitworth thread: A British standard that is still used in some applications.
Each standard has its own unique characteristics and is suited for different applications.
Understanding Unified Thread Series
The Unified Standard Thread system is divided into three main series: UNC, UNF, and UNEF. Each series has a specific pitch, diameter, and application.
The Three Main Series: UNC, UNF, UNEF
➡️ UNC (Unified Coarse Thread): UNC threads have a coarser pitch, making them suitable for applications where strength and ease of assembly are important. They are commonly used in heavy-duty machinery, construction, and industrial equipment.
➡️ UNF (Unified Fine Thread): UNF threads have a finer pitch, providing greater precision and resistance to vibration. They are often used in applications where precise alignment and sealing are required, such as automotive, aerospace, and instrumentation components.
➡️ UNEF (Unified Extra Fine Thread): UNEF threads have an even finer pitch than UNF threads, making them suitable for applications where extreme precision and resistance to vibration are critical. They are commonly used in high-precision instruments, aerospace components, and specialized machinery.
Application Examples of Each Series
➡️ Industrial Applications of UNC Threads: Bolts, nuts, and screws used in heavy machinery, construction equipment, and industrial piping systems.
➡️ Automotive and Aerospace Use of UNF Threads: Fasteners used in engines, transmissions, brakes, and aircraft components.
➡️ Specialty Uses for UNEF Threads: Precision instruments, optical equipment, and specialized machinery.
Design Specifications of Unified Standard Threads
Thread Dimensions and Tolerances
The dimensions of a Unified Standard Thread are defined by its pitch, diameter, and thread angle. The pitch is the distance between corresponding points on adjacent threads, while the diameter is the major diameter, which is the diameter of the thread crests. The angle formed by the thread’s flanks is known as the thread angle.
Understanding Pitch, Diameter, and Thread Angle
The pitch, diameter, and thread angle of a Unified Standard Thread are specified in ANSI standards. These specifications ensure that threads of the same series are compatible and can be used interchangeably.
The Role of Tolerances in Thread Fit
Tolerances are allowances for variations in thread dimensions. They are essential for ensuring proper fit and function between threaded components. There are different classes of fit for Unified Standard Threads, including loose, interference, and precision fits.
Material Considerations for Unified Threads
The material used for Unified Standard Threads can significantly affect their performance. Common materials used include:
➡️ Steel: The most common material for Unified Standard Threads, offering good strength and durability.
➡️ Stainless steel: Provides corrosion resistance, making it suitable for outdoor applications and environments with harsh conditions.
➡️ Aluminum: Lightweight and corrosion-resistant, often used in aerospace and automotive applications.
➡️ Brass: Offers good machinability and electrical conductivity, making it suitable for various applications.
Material Compatibility and Performance
The choice of material for Unified Standard Threads should be based on the specific requirements of the application, including strength, corrosion resistance, and compatibility with other materials.
Manufacturing and Quality Control
The Process of Cutting and Forming Unified Threads
Unified Standard Threads can be manufactured using various methods, including cutting and forming. Cutting involves removing material from a blank to create the desired thread profile, while forming involves shaping the thread by deforming the material.
Tools and Machinery Used for Precision Threading
Precision threading requires specialized tools and machinery, such as lathes, milling machines, and thread rolling machines. These machines are equipped with cutting tools or dies that can create accurate and consistent threads.
Differences Between Rolled and Cut Threads
Rolled threads are generally stronger and have a better surface finish than cut threads. However, cutting is more versatile and can be used to create a wider range of thread profiles.
Ensuring Thread Quality: Inspections and Testing
Quality control is essential for ensuring that Unified Standard Threads meet the required specifications. Inspections and testing can be performed using various methods, including:
➡️ Visual inspection: Checking for defects such as burrs, chips, or misalignment.
➡️ Thread gauges: Measuring the pitch, diameter, and thread angle of the thread.
➡️ Thread ring gauges: Checking the fit between a thread and a mating component.
➡️ Thread plug gauges: Checking the fit between a thread and a mating component.
Common Quality Control Methods
➡️ Thread pitch gauges
➡️ Thread ring gauges
➡️ Thread plug gauges
➡️ Thread micrometers
➡️ Profile projectors
➡️ Surface roughness testers
Tools and Techniques for Accurate Thread Measurement
➡️ Thread pitch gauges
➡️ Thread micrometers
➡️ Profile projectors
➡️ Surface roughness testers
Unified Standard Threads in Global Trade
Unified Standard Threads have played a significant role in facilitating international trade and manufacturing. By providing a common language for designers, manufacturers, and users, they have helped to reduce barriers to trade and promote global cooperation.
How Standardization Eases Global Trade and Production
Standardization of threads has several benefits for global trade and production, including:
➡️ Interchangeability: Components manufactured in different countries can be easily assembled.
➡️ Reduced costs: Avoids the need for custom threads, leading to lower manufacturing costs.
➡️ Improved quality: Ensures consistent performance and reliability of threaded connections.
➡️ Unified Threads in Global Standards: ISO and Beyond
While Unified Standard Threads are primarily used in North America, they have also been adopted as part of international standards, such as ISO (International Organization for Standardization). This ensures compatibility with other thread standards and facilitates global trade.
Conclusion: The Enduring Relevance of Unified Standard Threads
Unified Standard Threads continue to be an essential component of modern engineering. Their standardization, reliability, and versatility make them indispensable in a wide range of applications.
When selecting a thread standard for your application, it is important to consider factors such as:
➡️ Strength and durability: UNC threads are generally stronger, while UNF and UNEF threads offer greater precision.
➡️ Vibration resistance: UNF and UNEF threads are more resistant to vibration.
➡️ Material compatibility: The chosen thread standard should be compatible with the materials being used.
➡️ Manufacturing costs: Consider the cost of manufacturing and assembling components using different thread standards.
➡️ Industry standards: Adhere to industry-specific standards and regulations.
By carefully evaluating these factors, you can select the most appropriate Unified Standard Thread for your specific needs.
