In the world of hydraulics, where pressurized fluids power everything from construction equipment to machine tools, reliable connections are paramount. A single leak can lead to a complete system shutdown, costing time and money.
That’s where SAE ORB fittings come in – the industry standard for secure and leak-free connections in high-pressure applications.
What are SAE ORB Fittings?

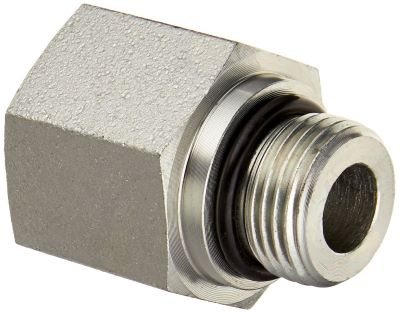

SAE ORB fittings, also known as O-ring Boss fittings, are designed specifically for hydraulic lines. They consist of a male stud with a flared end that seats within a female port. The key to their success lies in two key features:
➡️ O-ring Seal: An elastomeric O-ring sits within a groove on the male stud. When tightened, the O-ring compresses against the flared seat in the female port, creating a positive seal that can withstand significant pressure.
➡️ Flare Connection: The flared design of the male stud wedged against the female port provides additional mechanical strength, ensuring the connection remains secure even under extreme pressure fluctuations.
Common materials for ORB fittings include steel for high-pressure applications and brass for a good balance of affordability and durability.
Why Use SAE ORB Fittings?
There are several compelling reasons why SAE ORB fittings reign supreme in the world of hydraulics:
➡️ Secure Connections: The combination of the O-ring seal and the flare connection creates an exceptional barrier against leaks, even in high-pressure systems.
➡️ Reliability: With a proven track record, ORB fittings are known for their dependable performance, minimizing the risk of system failures.
➡️ Easy Installation: Compared to methods like welding, ORB fittings offer a user-friendly installation process. Simply tighten the fitting, and you’re set.
➡️ Availability: Widespread availability ensures you can find the right size and material of ORB fitting for virtually any hydraulic application.
Applications of SAE ORB Fittings
The primary application for SAE ORB fittings lies in:
➡️ Hydraulic Systems: They are the go-to choice for connecting hydraulic lines in construction equipment, agricultural machinery, machine tools, and countless other industrial applications.
➡️ High-Pressure Lines: Their ability to withstand high pressure makes them ideal for applications where powerful fluids are used.
➡️ Industrial Applications: Beyond pure hydraulics, ORB fittings can be found in compressed air systems and other industrial settings requiring secure, high-pressure connections.
Choosing the Right SAE ORB Fitting
To ensure a perfect fit and optimal performance, consider these factors when choosing your SAE ORB fitting:
➡️ Size and Thread Compatibility: Match the fitting size (diameter) to your hose or tubing and ensure the thread type (e.g., SAE J1926) aligns with the component you’re connecting to.
➡️ Material Selection: Steel offers superior strength for high-pressure applications, while brass provides a good balance for moderate pressure and corrosion resistance.
Installation Tips
While installation is generally straightforward, here are some reminders:
➡️ Always follow the manufacturer’s instructions for specific torque requirements.
➡️ Use proper tools and avoid overtightening, which can damage the fitting.
When working with hydraulic systems, prioritize safety by wearing appropriate eye protection and following lockout/tagout procedures.
Conclusion
SAE ORB fittings offer a winning combination of security, reliability, and ease of use. Their widespread availability in various sizes and materials makes them a versatile solution for numerous hydraulic and industrial applications.
So, next time you need a secure connection for your high-pressure lines, consider the trusted industry standard – SAE ORB fittings. They’ll keep your systems running smoothly and efficiently.
