In the world of hydraulic systems, achieving leak-free connections is of utmost importance for efficient and safe operation. O-Ring Face Seal (ORFS) hydraulic hose fittings have emerged as a popular choice for delivering precisely that. These fittings’ installation designs comply with ISO 12151-1 standard, which guarantees compatibility with other fittings in hydraulic systems. The performance of this kind of fitting is further improved by the addition of the ISO 8434-3 standard.
In this in-depth article, we will explore ORFS hydraulic hose fittings, their characteristics, applications, and essential considerations for selecting the right fitting.
What are ORFS Hydraulic Hose Fittings?

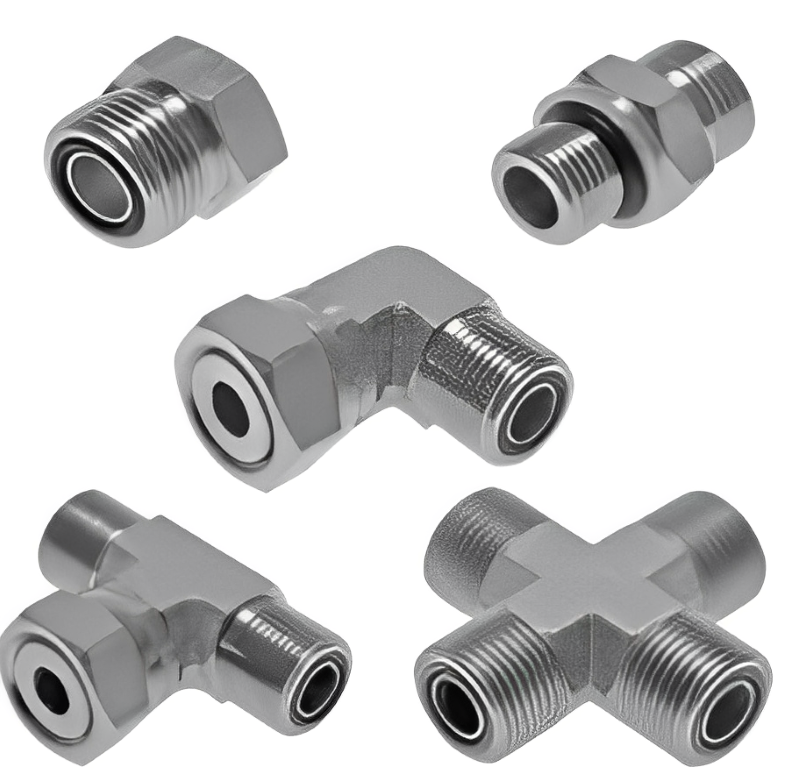

O-Ring Face Seal (ORFS) hydraulic hose fittings are designed to create a tight, leak-free connection between hoses and tubes in hydraulic systems. They consist of a male fitting with a straight thread and an O-ring groove on the face, which mates with a female fitting that has a straight thread and a captive O-ring. When the two fittings are connected and tightened, the O-ring compresses, creating a reliable and robust seal.
Advantages of ORFS Hydraulic Hose Fittings
ORFS fittings offer several advantages that make them a preferred choice for hydraulic applications:
Leak-Proof Connections
The primary advantage of ORFS fittings is their superior sealing performance, ensuring leak-free connections even in high-pressure hydraulic systems.
Vibration Resistance
These fittings are highly resistant to vibration and mechanical shocks, maintaining their sealing integrity in demanding environments.
Easy Installation
ORFS fittings are relatively easy to install, reducing assembly time and labor costs.
Reusable
When properly disassembled, ORFS fittings can be reused without compromising their sealing capabilities.
High Pressure Capability
ORFS fittings are designed to handle high-pressure hydraulic systems, making them suitable for various industrial applications.
Applications of ORFS Hydraulic Hose Fittings
ORFS hydraulic hose fittings are widely used in a variety of industries and applications, including:
Construction Equipment
ORFS fittings are commonly found in construction machinery, providing leak-free connections in hydraulic systems used in excavators, loaders, and bulldozers.
Agriculture
These fittings are utilized in agricultural machinery, such as tractors and harvesters, for efficient and reliable hydraulic operations.
Industrial Machinery
ORFS fittings play a vital role in powering industrial machinery, ensuring smooth and precise movements in manufacturing processes.
Mining
In the mining industry, ORFS fittings are employed in hydraulic systems that operate heavy-duty equipment and machinery.
Automotive
Automotive applications include power steering systems and hydraulic brake lines, where ORFS fittings provide reliable sealing.
Selecting the Right ORFS Hydraulic Hose Fittings
Choosing the appropriate ORFS fitting is crucial for optimal performance and safety of the hydraulic system. Consider the following factors when selecting fittings:
1. Size and Thread Type
Select fittings that match the size and thread type of the hoses and tubes to achieve a proper connection.
2. Pressure Rating
Ensure that the fitting’s pressure rating meets or exceeds the maximum operating pressure of the hydraulic system.
3. Material Compatibility
Choose fittings made from materials compatible with the hydraulic fluid to prevent corrosion and degradation.
4. Environmental Considerations
Consider the operating environment, including temperature and exposure to chemicals, to select fittings that can withstand these conditions.
5. System Compatibility
Ensure that the ORFS fitting is compatible with the rest of the hydraulic system components for seamless integration.
FAQs (Frequently Asked Questions)
Are ORFS hydraulic hose fittings compatible with other types of fittings?
ORFS fittings are generally not interchangeable with other types of fittings. They require compatible ORFS fittings for a secure connection.
Can I reuse the O-ring in an ORFS fitting?
It is recommended to replace the O-ring when reassembling ORFS fittings to ensure optimal sealing performance.
What is the maximum pressure that ORFS fittings can handle?
ORFS fittings are designed to handle high-pressure applications, often up to several thousand PSI, depending on the size and material.
Can I use ORFS fittings in hydraulic systems with flammable fluids?
Yes, ORFS fittings are suitable for use with a wide range of hydraulic fluids, including flammable ones.
Are ORFS fittings compatible with stainless steel tubing?
Yes, ORFS fittings can be used with stainless steel tubing, provided they are the correct size and thread type.
How can I ensure a proper seal with ORFS fittings?
Ensure that the fittings are tightened to the recommended torque value to achieve a reliable seal without damaging the O-ring.
Conclusion
ORFS hydraulic hose fittings are an essential component in modern hydraulic systems, offering leak-free connections and reliable sealing performance. Their advantages, such as vibration resistance and ease of installation, make them a popular choice in various industries. By understanding the critical factors for selecting the right ORFS fitting and following best practices for installation, hydraulic systems can operate efficiently and safely.
