Crimping hydraulic hose fittings is a crucial skill for anyone working with hydraulic systems. Whether you’re a seasoned professional or a DIY enthusiast, understanding the proper crimping techniques is essential to ensure the reliability and safety of hydraulic connections.
In this comprehensive guide, we will cover everything you need to know about how to properly crimp hydraulic hose fittings. From understanding the tools required to following step-by-step instructions, we will provide you with expert insights and firsthand experiences to make the process seamless.
How to Properly Crimp a Hydraulic Hose Fitting?
Properly crimping a hydraulic hose fitting requires precision and attention to detail. Below, we outline a step-by-step process to guide you through the procedure:
Step 1: Prepare the Necessary Tools and Materials
Before starting, ensure you have all the essential tools and materials:
➢ Hydraulic hose
➢ Fittings
➢ Hydraulic hose crimping machine
➢ Calipers or tape measure
➢ Marker
➢ Safety glasses and gloves
Step 2: Measure and Cut the Hose
Using calipers or a tape measure, determine the correct length for the hydraulic hose. Mark the cutting point with a marker and cut the hose using a proper hose cutter or a fine-toothed saw.
Step 3: Prepare the Hose and Fittings
Inspect the hose end for any dirt, debris, or damage. Clean it thoroughly and ensure there are no burrs or uneven edges. Lubricate the inside of the hose and the fitting to ease the crimping process.
Step 4: Select the Right Crimping Die
Choose the appropriate crimping die size for the hose and fitting. Refer to the manufacturer’s specifications or consult a hydraulic expert if you’re unsure about the correct die size.

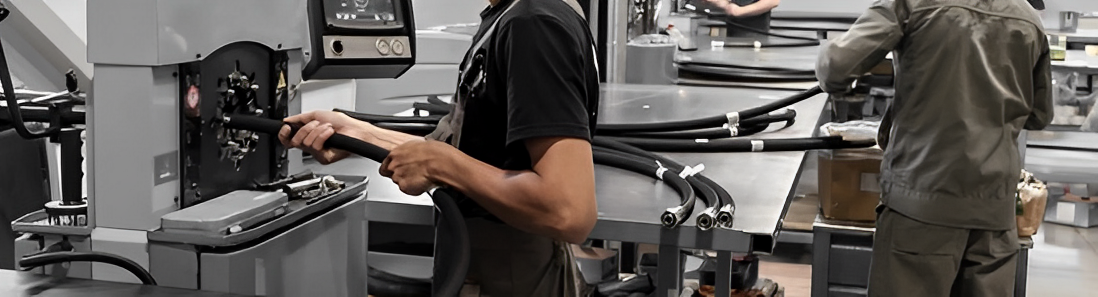

Step 5: Crimp the Hose
Place the hose and fitting into the crimping machine, aligning them properly with the die. Apply steady pressure on the machine’s handle until you achieve a secure and uniform crimp.
Step 6: Inspect the Crimp
After crimping, visually inspect the hose and fitting connection. Ensure that the crimp is tight and free from any irregularities. To check the integrity of the crimped connection, conduct a pressure test.
Step 7: Install and Test
Install the crimped hose assembly into the hydraulic system. Conduct a thorough test to check for any leaks, pressure drops, or other issues. Address any problems before putting the hydraulic system into full operation.
Can I Crimp a Hydraulic Hose Myself?
As a DIY enthusiast, you might wonder if you can crimp a hydraulic hose yourself. While it is possible, it’s essential to consider the complexity and safety implications of the task. Crimping a hydraulic hose requires specialized tools and expertise, and any errors can lead to catastrophic failures.
If you have experience working with hydraulic systems and access to the right equipment, you may attempt to crimp a hose fitting yourself. However, it’s always recommended to consult with a professional or seek proper training before attempting any hydraulic hose crimping.
Expert Tips for Proper Hose Crimping
Tip 1: Follow Manufacturer’s Guidelines
Always refer to the manufacturer’s guidelines and specifications for both the hose and the crimping machine. Using the correct die size and following recommended procedures ensures a reliable and safe crimped connection.
Tip 2: Clean and Lubricate
Clean the hose end and fitting thoroughly before crimping to avoid contaminants entering the hydraulic system. Additionally, lubricate the hose and fitting surfaces to facilitate the crimping process.
Tip 3: Inspect and Test
Inspect the crimped connection visually and perform a pressure test to ensure it can withstand the system’s operational pressures. Regular inspections and maintenance are crucial to prevent potential failures.
Tip 4: Invest in Quality Tools
High-quality crimping machines, hoses, and fittings are essential for a successful crimp. Investing in reliable tools will not only ensure safer connections but also contribute to the longevity of your hydraulic system.
Tip 5: Seek Professional Assistance
If you are uncertain about any aspect of the crimping process or lack experience, don’t hesitate to seek professional assistance. Hydraulic systems can be complex, and expert guidance can prevent costly mistakes.
FAQs (Frequently Asked Questions)
Can I reuse a crimped hydraulic hose fitting?
While it is possible to reuse crimped fittings, it’s generally not recommended. Crimped connections are designed for one-time use as the crimping process permanently deforms the fitting and the hose. Reusing fittings can compromise the integrity of the connection and lead to leaks or failures. It’s safer and more reliable to use new fittings whenever you need to replace a hose.
How do I identify the correct hose size and fitting?
Identifying the correct hose size and fitting is crucial for a successful crimp. Refer to the manufacturer’s specifications or look for markings on the hose and fittings that indicate their size. Measure the outside diameter of the hose to confirm its size, and ensure the fitting matches the hose size and type.
Can I crimp a hose without a crimping machine?
While it is technically possible to crimp a hose without a crimping machine, it’s not recommended. A proper crimping machine applies uniform pressure to create a secure connection, ensuring the safety and reliability of the hydraulic system. Using improvised methods may result in uneven crimps or compromised connections.
How often should I inspect my crimped connections?
Regular inspections are essential to maintain the integrity of your hydraulic system. Inspect crimped connections at least every six months or more frequently if the system is subjected to harsh operating conditions. Look for signs of leaks, damage or wear, and repair them immediately.
Can I use a damaged hose for crimping?
No, you should never use a damaged hose for crimping. Damaged hoses are structurally compromised and may not withstand the crimping process or the hydraulic system’s operating pressures. Always use new hoses that are free from cuts, abrasions, or other visible defects.
What is the maximum pressure a properly crimped hydraulic hose can handle?
The maximum pressure a properly crimped hydraulic hose can handle depends on several factors, including the hose material, reinforcement type, and fitting specifications. Always refer to the manufacturer’s guidelines and ensure that the crimped connection can handle the system’s maximum operating pressure.
Conclusion
Crimping hydraulic hose fittings is a critical skill that ensures the efficiency, reliability, and safety of hydraulic systems. By following the step-by-step process and expert tips outlined in this article, you can confidently crimp hydraulic hoses with precision.
Remember to prioritize safety and accuracy throughout the crimping process. When in doubt, seek assistance from professionals or undergo proper training to enhance your crimping skills.
Now that you’re equipped with comprehensive knowledge about how to properly crimp hydraulic hose fittings, you can tackle hydraulic projects with confidence and expertise.
