Welcome to our comprehensive guide on double ferrule compression fittings. In this article, we will explore hydraulic systems and double ferrules. Hydraulic systems are a remarkable technology. Double ferrules play a key role in hydraulic systems. This guide is for beginners who want to learn the basics. It is also for experts who want advanced insights.
Double Ferrule: What Sets It Apart?
A double ferrule compression fitting is an advanced component. It is designed to create a leak-proof connection in hydraulic systems. Double ferrules are different from single ferrule fittings. They have two separate ferrules that grip the tube. This provides enhanced stability and reliability. The risk of leaks is minimized by this unique design. Double ferrules are indispensable in high-pressure applications.
Advantages of Double Ferrule Compression Fittings
1. Leak-Free Performance:
One of the primary advantages of double ferrule compression fittings is their impeccable sealing capability. The dual ferrule design ensures a strong and secure connection. It eliminates leaks, even in demanding hydraulic environments.
2. Ease of Installation:
Installing double ferrule compression fittings is remarkably straightforward. Their design enables simple assembly, no specialized tools needed. This saves time and effort during installation.
3. Wide Application Range:
Double ferrule compression fittings are versatile. They can be used with various tube materials. This makes them suitable for diverse applications. These fittings offer reliable performance with stainless steel, copper, or other materials. You can trust them in any situation.

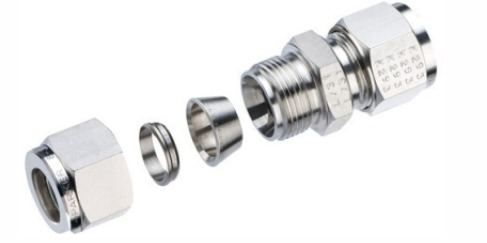

Exploring the Anatomy of Double Ferrule Compression Fittings
1. Front Ferrule:
The front ferrule makes contact with the tube during installation. It is the first component to do so. It forms a seal by pressing against the tube and prevents any fluid from escaping. This initial seal is crucial for the fitting’s overall performance.
2. Back Ferrule:
The back ferrule provides additional support to the connection. A secondary seal is created to ensure stability of the fitting. This is particularly important in high-pressure situations. The back ferrule strengthens the hold on the tube. It improves the connection’s overall integrity.
FAQs: Addressing Common Queries About Double Ferrule Compression Fittings
What Is the Main Difference Between Single and Double Ferrule Compression Fittings?
The primary distinction lies in the number of ferrules used. Single ferrule fittings grip the tube with one ferrule. Double ferrule fittings, however, use two ferrules to grip the tube. This dual ferrule design enhances the fitting’s stability and leak-proof capabilities.
Can Double Ferrule Compression Fittings Be Reused?
Double ferrule compression fittings can be reused. Before reinstalling them, inspect the ferrules for wear or damage. Damaged ferrules compromise the fitting’s integrity, leading to potential leaks. If you see any signs of wear, replace the ferrules. This will improve performance.
Are Double Ferrule Compression Fittings Compatible With Different Tube Materials?
Absolutely! Double ferrule compression fittings are compatible with stainless steel, copper, and plastic tubes. These fittings are versatile and can be used with various tube materials. They are suitable for various industries due to their compatibility. These applications have a wide range of uses.
How Do I Ensure a Proper Seal with Double Ferrule Compression Fittings?
Achieving a proper seal with double ferrule compression fittings requires careful installation. Ensure that the tube is cut squarely, and there are no burrs or rough edges. Properly tightening the fitting components is crucial. This includes both ferrules. It ensures a reliable and leak-free connection.
What Is the Maximum Pressure Rating for Double Ferrule Compression Fittings?
The maximum pressure rating for double ferrule compression fittings varies. It depends on the size, material, and design of the fitting. To determine the fitting’s pressure rating, refer to the manufacturer’s specifications and guidelines. It is essential for your hydraulic system.
Can Double Ferrule Compression Fittings Be Used in High-Temperature Applications?
Double ferrule compression fittings are suitable for high-temperature applications. You need to choose the right material for your system’s temperature. Also, consider the design that fits your needs. Stainless steel has great heat resistance, perfect for high-temperature places.
Conclusion: Embracing the Efficiency of Double Ferrule Compression Fittings
Understanding double ferrule compression fittings is crucial for optimizing hydraulic systems. Engineers and technicians worldwide choose these for their leak-free performance. They are easy to install and compatible with various tube materials. Using double ferrule compression fittings is essential for hydraulic applications. Mastering this art guarantees efficiency, reliability, and longevity.
