Leaks in piping systems can have severe consequences, especially in industrial settings. They can lead to:
➡️ Safety hazards: Leaks can release hazardous substances, posing risks to workers and the environment.
➡️ Environmental damage: Leaks can contaminate water supplies and soil.
➡️ Financial losses: Leaks can result in costly repairs, downtime, and wasted resources.
➡️ Operational disruptions: Leaks can disrupt production processes and services.
In residential settings, leaks can cause water damage, mold growth, and increased utility bills.
Common Causes of Leaks in Piping Systems
There are several reasons why leaks may happen, including:
➡️ Corrosion: Over time, pipes can corrode, leading to weakened sections and eventual leaks.
➡️ Erosion: Water flow can erode pipe walls, especially at bends and joints.
➡️ Mechanical stress: Vibrations, pressure fluctuations, and improper installation can cause stress on pipes, leading to leaks.
➡️ Improper materials or fittings: Using low-quality materials or fittings can increase the risk of leaks.

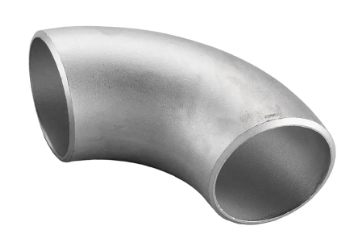

What is a Buttweld Stainless Elbow?
Buttweld fittings are pipe components that are joined to other pipes by welding. They are typically used in high-pressure and high-temperature applications. Buttweld elbows are a specific type of fitting that provides a smooth transition between two pipes at an angle.
Materials and Grades of Stainless Steel Used in Buttweld Elbows
Buttweld elbows are commonly made from stainless steel due to its excellent corrosion resistance, strength, and durability. The most common grades of stainless steel used for these fittings include:
➡️ Type 304: A general-purpose grade with good corrosion resistance and formability.
➡️ Type 316: A higher alloy grade with improved resistance to pitting and crevice corrosion, often used in marine and chemical environments.
➡️ Type 317: A specialized grade with even higher molybdenum content for enhanced resistance to chloride-induced pitting corrosion.
Key Differences Between Buttweld Elbows and Other Pipe Fittings
Buttweld elbows offer several advantages over other types of pipe fittings:
➡️ Strength and durability: Welded joints provide a strong and reliable connection.
➡️ Leak-proof performance: Buttweld fittings offer excellent leak-proof performance, especially when properly installed and inspected.
➡️ Smooth flow: The seamless transition provided by buttweld elbows helps to reduce pressure drop and improve flow efficiency.
➡️ Versatility: Buttweld fittings can be used in a wide range of applications, from industrial processes to residential plumbing.
How Buttweld Stainless Elbows Create a Leak-Proof Seal
Buttweld elbows create a leak-proof seal by joining two pipes together with a continuous weld. The welding process melts the edges of the pipes and fuses them together, creating a strong and durable bond.
Advantages of a Welded Joint: Strength and Durability
Welded joints are known for their strength and durability. They are perfect for demanding applications since they can tolerate high temperatures and pressures.
Reducing Stress Points in Piping Systems
Buttweld elbows can help to reduce stress points in piping systems by providing a smooth transition between pipes. This can help to prevent leaks and improve the overall longevity of the system.
Types of Buttweld Stainless Elbows: Selecting the Right Fit
Long Radius vs. Short Radius Elbows
Buttweld elbows are available in two main types: long radius and short radius. Long radius elbows have a gradual bend, while short radius elbows have a sharper bend. The choice between long radius and short radius elbows depends on the specific application and the desired flow characteristics.
45-Degree, 90-Degree, and 180-Degree Elbows: Applications and Benefits
Buttweld elbows are available in various angles, including 45 degrees, 90 degrees, and 180 degrees. The appropriate angle depends on the piping layout and the desired flow direction.
➡️ 45-degree elbows are commonly used for changes in direction and to reduce pressure drop.
➡️ 90-degree elbows are used for sharp turns and are often used in plumbing systems.
➡️ 180-degree elbows are used for reversing the flow direction.
Choosing the Right Wall Thickness for Leak Prevention
The wall thickness of a buttweld elbow is an important factor to consider for leak prevention. Thicker walls can provide better resistance to pressure and corrosion, but they can also be more expensive. The appropriate wall thickness depends on the specific application and the required pressure rating.
The Installation Process: Ensuring a Secure and Leak-Proof Fit
Preparing the Piping System for Buttweld Elbow Installation
Before installing a buttweld elbow, it is important to prepare the piping system by cleaning and cutting the pipes to the desired length.
Best Practices for Welding Buttweld Elbows
Proper welding techniques are essential for ensuring a strong and leak-proof connection. Qualified welders should use the appropriate welding process and materials for the specific type of stainless steel being used.
Post-Weld Testing and Inspection for Leak Detection
After welding, the joint should be inspected for defects and tested for leaks. This can be done using visual inspection, dye penetrant testing, or ultrasonic testing.
Check out these other resources ⬇️⬇️⬇️
How VCO Fittings Ensure Safety and Precision in Piping
How a 1/4 NPT Plug Ensures Reliable Pressure Sealing
Benefits of Using Buttweld Stainless Elbows for Leak-Proof Systems
Superior Corrosion Resistance in Challenging Environments
Stainless steel buttweld elbows offer excellent corrosion resistance, making them ideal for use in harsh environments such as chemical plants, refineries, and marine applications.
Long-Term Cost Efficiency and Minimal Maintenance
Buttweld fittings are known for their long-term durability and low maintenance requirements. This can help to reduce costs over time.
Enhanced Flow Efficiency and Reduced Pressure Drop
The smooth transition provided by buttweld elbows can help to improve flow efficiency and reduce pressure drop, leading to energy savings.
Potential Challenges and How to Overcome Them
Addressing Common Installation Issues
Common installation issues that can lead to leaks include misalignment, improper welding techniques, and stress concentration. These issues can be avoided by following proper installation procedures and using qualified welders.
Troubleshooting Misalignment and Weld Defects
If misalignment or weld defects are detected, they should be corrected before proceeding with the installation.
Preventing Thermal Expansion and Stress Corrosion Cracking
Thermal expansion and stress corrosion cracking can be prevented by using proper support structures and selecting the appropriate materials.
Comparing Buttweld Stainless Elbows with Other Leak-Prevention Solutions
Buttweld vs. Threaded Fittings: Which is More Reliable?
Buttweld fittings are generally considered more reliable than threaded fittings, especially in high-pressure and high-temperature applications. Threaded fittings can be prone to leaks, especially if they are not properly tightened or if the threads are damaged.
When to Choose Buttweld Over Flanged Connections
Flanged connections are another option for joining pipes, but they can be more expensive and require more space. Buttweld fittings are often preferred in applications where space is limited or where a stronger and more reliable connection is required.
Evaluating Cost, Efficiency, and Long-Term Performance
When choosing between buttweld fittings and other leak-prevention solutions, it is important to consider factors such as cost, efficiency, and long-term performance. Buttweld fittings can offer a cost-effective and reliable solution for many applications.
Applications of Buttweld Stainless Elbows in Leak-Proof Pipe Systems
Industrial Applications: Chemical and Petrochemical Plants
Buttweld stainless elbows are widely used in industrial applications, such as chemical and petrochemical plants, where corrosion resistance and leak prevention are critical.
Residential and Commercial Plumbing Systems
Buttweld fittings can also be used in residential and commercial plumbing systems, providing a reliable and durable connection.
High-Pressure and High-Temperature Piping Environments
Buttweld elbows are well-suited for high-pressure and high-temperature piping environments, thanks to their strength and durability.
Conclusion: Enhancing Leak Prevention with Buttweld Stainless Elbows
The choice of pipe fittings is crucial for ensuring the integrity and safety of piping systems. Buttweld stainless elbows offer a reliable and effective solution for leak prevention in a wide range of applications.
By following proper installation procedures and selecting the appropriate materials, you can enhance the leak-proof performance of your piping system.
