Hydraulic systems are the lifeblood of numerous industrial applications, ranging from construction machinery to manufacturing processes. At the heart of these systems lie hydraulic fittings, which play a crucial role in ensuring the efficient and reliable operation of hydraulic components.
In this article, we will delve into the world of hydraulic fittings, with a particular focus on the importance and versatility of 90 degree fittings.
Understanding Hydraulic Fittings
Hydraulic fittings are connectors used to join various hydraulic components, such as hoses, pipes, and cylinders, in a hydraulic system. These fittings are designed to create leak-free connections while allowing for easy disconnection when necessary. They come in various types, including straight fittings, elbow fittings, tee fittings, and our main focus—90 degree hydraulic fittings.

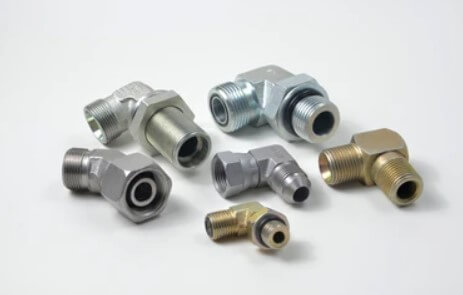

Several examples of 90 Degree Hydraulic Fittings:
➢ 90° Elbow Metric Thread Adjustable Stud Ends
➢ 90° Elbow BSP Thread Adjustable Stud Ends O-Ring
➢ 90° BSP Thread Elbow with 60°Cone Sealing
➢ 90° Elbow JIS Gas Male Fitting with 60° Cone
➢ 90°JIS Gas BSP Male with SAE O-Ring Boss
➢ 90°JIS Gas Male with 60° Cone to NPT Male
➢ 90° ORFS Male O-Ring Adapter
Advantages of 90 Degree Hydraulic Fittings
Space-saving design:
In the realm of hydraulic systems, space is often a precious commodity. Machinery and equipment are often designed to be compact and efficient, requiring careful planning and utilization of available space. Here, the compact nature of 90 degree hydraulic fittings shines. Their perpendicular design allows for a tight turn in the hydraulic line, effectively saving space compared to straight fittings or adapters.
By employing 90 degree fittings, hydraulic system designers can make the most out of limited space, ensuring efficient component placement and optimized overall system design. This space-saving advantage becomes particularly crucial in applications where machinery or equipment needs to operate within confined areas.
Improved flow direction:
Proper flow direction is vital for hydraulic systems to function optimally. Fluids need to flow smoothly and efficiently, reaching their intended destinations without any hindrances or excessive pressure drops. 90 degree hydraulic fittings excel in facilitating this desired flow direction.
With their perpendicular design, these fittings allow hydraulic lines to change direction at right angles, effectively redirecting the flow. This feature helps reduce unnecessary bends and turns in the system, minimizing pressure drops and ensuring the hydraulic fluid reaches its destination without impedance. By optimizing flow direction, 90 degree fittings contribute to the overall performance and efficiency of hydraulic systems.
Applications of 90 Degree Hydraulic Fittings
Construction and heavy machinery:
Construction equipment, such as excavators, loaders, and bulldozers, heavily relies on hydraulic systems to power their various functions. The use of 90 degree fittings in these applications is widespread, given their ability to efficiently route hydraulic lines within the limited space available in heavy machinery. These fittings enable hydraulic systems to operate reliably while minimizing the risk of damage or interference during operation.
Industrial machinery and manufacturing:
In the industrial sector, hydraulic systems are integrated into various manufacturing processes to provide the necessary power and control. From assembly lines to automated machinery, hydraulic systems play a vital role in ensuring smooth and efficient operations. 90 degree hydraulic fittings find extensive use in these applications, where their space-saving design allows for optimal placement within the equipment, maximizing functionality while maintaining a compact footprint.
Factors to Consider When Choosing 90 Degree Hydraulic Fittings
Operating pressure and temperature:
Operating pressure and temperature are critical factors to consider when selecting hydraulic fittings, including 90 degree variants. Understanding the pressure and temperature requirements of the system is crucial to ensure the fittings can handle the specific conditions. It is essential to choose fittings with appropriate pressure and temperature ratings to avoid potential failures or leaks.
Material compatibility:
Hydraulic systems utilize various fluids, such as oils, water-glycol mixtures, and synthetic fluids. It is vital to select 90 degree fittings made from materials compatible with the fluids used in the system to prevent chemical reactions or degradation. Common materials used for hydraulic fittings include stainless steel, brass, and various types of plastics. Careful consideration of material compatibility ensures the longevity and reliability of the hydraulic system.
Installation and Maintenance of 90 Degree Hydraulic Fittings
Proper installation and regular maintenance are crucial for the optimal performance and longevity of hydraulic systems employing 90 degree fittings. The following guidelines should be followed:
Proper installation techniques:
Installing 90 degree hydraulic fittings requires attention to detail and adherence to industry best practices. Ensure the hydraulic lines are properly cleaned and free from debris before connecting the fittings. Carefully tighten the fittings using appropriate tools, following the manufacturer’s torque specifications. This helps ensure secure connections and reduces the risk of leaks or failure.
Regular maintenance and inspection:
Routine maintenance is essential to keep hydraulic systems in prime condition. Regularly inspect the 90 degree fittings for signs of wear, damage, or leaks. Replace any fittings that show signs of degradation or compromise. Additionally, keep the hydraulic system clean and monitor fluid levels and quality. By staying proactive in maintenance, the lifespan and performance of the hydraulic system can be greatly enhanced.
Troubleshooting Common Issues with 90 Degree Hydraulic Fittings
Leakage and sealing problems:
Leakage is a common issue in hydraulic systems and can occur in fittings due to various reasons such as improper installation, wear and tear, or damage. When faced with leakage problems, it is important to identify the root cause. Inspect the fittings for any signs of damage or loose connections. Replace faulty fittings and ensure proper sealing by using appropriate sealing materials such as O-rings or gaskets.
Flow restrictions and blockages:
Flow restrictions and blockages in hydraulic systems can lead to reduced performance or complete system failure. If experiencing flow issues, check the 90 degree fittings for any obstructions or clogs. Ensure that the fittings are correctly sized and that there are no kinks or bends in the hydraulic lines. Thoroughly flush the system if necessary and consider installing additional filters or screens to prevent future blockages.
Safety Considerations with 90 Degree Hydraulic Fittings
Pressure-related hazards:
High-pressure hydraulic systems can pose significant safety risks if not handled properly. When working with 90 degree fittings, be aware of the system’s operating pressure and take appropriate precautions. Wear protective gear, including gloves and eye protection, to prevent injuries in case of sudden releases or leaks. Always follow safe work practices and adhere to industry regulations to ensure personal safety and the integrity of the hydraulic system.
Proper handling and storage:
To maintain the quality and performance of 90 degree hydraulic fittings, proper handling and storage are essential. Handle fittings with care, avoiding unnecessary impact or bending. Store fittings in a clean and dry environment, away from corrosive substances or extreme temperatures. Protect fittings from dust and debris by using appropriate packaging or storage containers. By taking these precautions, the lifespan and reliability of the fittings can be maximized.
Future Developments in 90 Degree Hydraulic Fittings
Advancements in materials and design:
The field of hydraulic fittings continues to evolve, with ongoing advancements in materials and design. Manufacturers are constantly exploring new materials that offer improved performance, such as lightweight alloys or high-strength polymers. Additionally, innovative designs are being developed to enhance the functionality and ease of use of 90 degree fittings, potentially leading to more efficient hydraulic systems in the future.
Integration with digital technologies:
The increasing trend of digitalization and automation in industrial processes is also impacting hydraulic systems. The integration of digital technologies, such as sensors and data analytics, provides valuable insights into the performance and condition of hydraulic fittings. This digital integration can enhance maintenance practices, optimize system efficiency, and contribute to the overall advancement of hydraulic systems utilizing 90 degree fittings.
Wrap Up
90 degree hydraulic fittings play a vital role in the efficient and reliable operation of hydraulic systems. Their space-saving design and ability to optimize flow direction make them an invaluable component in various applications, from construction machinery to industrial manufacturing processes. By considering factors such as operating conditions and material compatibility, selecting and maintaining 90 degree fittings becomes a key aspect of achieving high-performance hydraulic systems.
With ongoing advancements and the integration of digital technologies, the future holds even greater possibilities for the optimization and innovation of 90 degree hydraulic fittings, ensuring continued progress in hydraulic system design and functionality.
