3/8 inverted flare fittings are commonly used in high-pressure applications such as brake lines, fuel systems, and hydraulic systems. These fittings are designed to create a reliable, leak-proof connection between metal tubing and various components.
Selecting the correct 3/8 inverted flare fitting is crucial for system integrity, safety, and performance. A poor-fitting connection can result in leaks, pressure loss, or even system failure, leading to costly repairs and potential hazards.
This guide will help you understand 3/8 inverted flare fittings, their applications, advantages, selection criteria, installation best practices, and maintenance tips.
What Are 3/8 Inverted Flare Fittings?

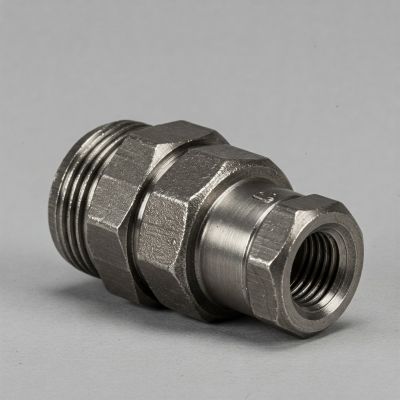

3/8 inverted flare fittings are specialized connectors used to join metal tubing in high-pressure applications. These fittings feature a flared end that fits into a matching female seat, forming a tight and secure seal when tightened.
Key Features and Design
➡️ 45-degree flare angle for a secure fit
➡️ Inverted flare design for enhanced leak prevention
➡️ Male and female threaded connections
➡️ Commonly used in fluid and gas transport systems
Common Materials Used
➡️ Brass: Corrosion-resistant, commonly used in fuel and hydraulic systems.
➡️ Steel: High strength, often used in automotive brake lines.
➡️ Stainless Steel: Exceptional durability and resistance to harsh environments.
Common Applications of 3/8 Inverted Flare Fittings
Automotive Brake and Fuel Lines
These fittings are widely used in automotive applications, ensuring secure connections for brake fluid and fuel delivery systems.
HVAC and Refrigeration Systems
Used in air conditioning and refrigeration systems to handle high-pressure refrigerants efficiently.
Hydraulic and Gas Systems
Commonly found in industrial hydraulic machinery and gas distribution systems where a leak-free connection is essential.
Industrial Machinery
Utilized in various industrial equipment that requires fluid or gas transfer under high pressure.
Advantages of Using 3/8 Inverted Flare Fittings
Leak-Proof Seal for High-Pressure Applications
The inverted flare design provides a secure, self-sealing connection that prevents leaks even under high pressure.
Durability and Corrosion Resistance
Available in brass, steel, and stainless steel, these fittings are built to withstand harsh environments and prolonged use.
Ease of Installation and Reusability
Inverted flare fittings can be easily installed and removed without damaging the tubing, making them a reusable and cost-effective choice.
How to Choose the Right 3/8 Inverted Flare Fitting
Matching Thread Size and Flare Angle
Ensure compatibility with existing components by selecting fittings with the correct thread size and a standard 45-degree flare angle.
Selecting the Right Material for Your Application
Choose brass for corrosion resistance, steel for high strength, or stainless steel for maximum durability in extreme conditions.
Understanding Pressure Ratings and Compatibility
Verify that the fitting meets the pressure requirements of your system to prevent failures and ensure optimal performance.
Installation Tips and Best Practices
Proper Flaring Techniques for Tubing
➡️ Use a high-quality flaring tool to create a smooth, uniform flare.
➡️ Ensure the flare is properly aligned to prevent leaks.
Ensuring a Secure and Leak-Free Connection
➡️ Tighten fittings to the manufacturer’s recommended torque specifications.
➡️ Avoid over-tightening, which can distort the flare and cause leaks.
Common Mistakes to Avoid
➡️ Using damaged or improperly flared tubing
➡️ Mixing incompatible materials
➡️ Over-tightening or under-tightening fittings
Troubleshooting and Maintenance
Identifying and Fixing Leaks
➡️ Inspect connections for visible signs of leaks.
➡️ Re-tighten or replace fittings if necessary.
Cleaning and Inspecting Fittings for Wear
➡️ Regularly check fittings for corrosion or damage.
➡️ Clean fittings to remove debris that could affect performance.
When to Replace Old Fittings
➡️ Replace fittings if they show signs of significant wear or damage.
➡️ Consider upgrading to stainless steel for added durability in harsh conditions.
Where to Buy Quality 3/8 Inverted Flare Fittings
Recommended Brands and Suppliers
➡️ Sannke
Factors to Consider When Purchasing
➡️ Material type and quality
➡️ Pressure rating compatibility
➡️ Availability of matching components
Online vs. Local Hardware Stores
➡️ Online: Greater variety, competitive pricing, and customer reviews.
➡️ Local Stores: Immediate availability, hands-on inspection before purchase.
Conclusion
Selecting the right 3/8 inverted flare fitting is essential for the safety and efficiency of your system. Take the time to research, choose the appropriate material, and follow best practices for installation and maintenance to ensure optimal performance.
Recap of Key Points
➡️ 3/8 inverted flare fittings provide secure, leak-proof connections for high-pressure applications.
➡️ They are available in brass, steel, and stainless steel to suit different environments.
➡️ Choosing the right fitting is crucial for safety and efficiency.
Final Tips for Buyers
➡️ Always verify compatibility with your system before purchasing.
➡️ Invest in high-quality fittings to ensure long-term reliability.
