When it comes to plumbing connections, choosing the right fitting is crucial for a secure and long-lasting installation. Among the various options available, 3/8 compression unions offer a unique combination of ease of use, versatility, and reliability, making them a popular choice for both DIY enthusiasts and professional plumbers.

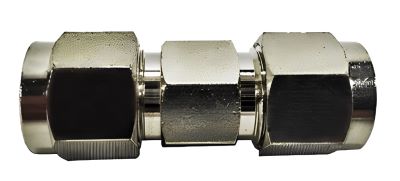

What is a 3/8 Compression Union?
A 3/8 compression union is a type of fitting used to connect two pieces of tubing. It consists of three main parts:
➡️ Nut: This threaded component tightens to compress the other parts of the union.
➡️ Ferrule: This ring-shaped piece is made of a soft metal and sits against the tubing. Tightening the nut compresses the ferrule to create a seal.
➡️ Body: The main body of the union provides a passage for the fluid and has threads on both ends for connecting the nut and the tubing.
These unions typically have a diameter of 3/8 inch on the outside of the tubing and are commonly made from brass or nickel-plated brass for durability and resistance to corrosion.
Advantages of Using a 3/8 Compression Union
One of the biggest advantages of 3/8 compression unions is their ease of use. Unlike soldered or brazed connections, which require special tools and expertise, compression unions require just a wrench to tighten the nut. This makes them ideal for DIY projects where plumbing tasks need to be tackled without extensive experience.
Furthermore, 3/8 compression unions offer excellent versatility. They are compatible with various tubing materials, including copper, brass, aluminum, and even some types of plastic. Additionally, they can be used with various fluids like water, gas, and air, depending on the material and pressure rating of the specific union.
3/8 compression unions also excel in creating leak-proof connections. The ferrule compresses to form a tight seal around the tubing, preventing leaks even under pressure. This makes them perfect for applications where frequent disassembly is required, such as for maintenance or repairs.
Another benefit is reusability. As long as they are disassembled carefully, 3/8 compression unions can be taken apart and used again for future projects. This translates to cost-effectiveness in the long run.
Applications of 3/8 Compression Unions
The ease of use and versatility of 3/8 compression unions make them suitable for a wide range of plumbing applications. Here are some common examples:
➡️ Connecting pipes under sinks and for faucets: These unions are perfect for connecting the flexible water supply lines to the shut-off valves under your sink or to the faucet itself.
➡️ Refrigerator ice maker lines: The water supply line that connects to your refrigerator’s ice maker often uses a 3/8 compression union for a secure and leak-free connection.
➡️ Gas lines for appliances: Some gas lines for appliances like stoves and dryers may utilize 3/8 compression unions, although it’s important to ensure the chosen union is rated for gas and to follow local building codes for gas line installations.
➡️ Air lines for pneumatic systems: As long as the pressure rating is compatible, 3/8 compression unions can be used to connect air lines in pneumatic systems.
Considerations When Using 3/8 Compression Unions
It’s important to remember that 3/8 compression unions are not suitable for every plumbing situation. They are not ideal for high-pressure applications, so always check the pressure rating of the specific union you plan to use.
Proper installation is crucial to ensure a watertight seal. Make sure to follow the manufacturer’s instructions carefully to avoid leaks. Additionally, over-tightening the nut can damage the ferrule or the tubing, so be sure to tighten it only until snug.
Conclusion
3/8 compression unions offer a simple and reliable solution for various plumbing tasks. Their ease of use, versatility, and ability to create leak-proof connections make them a valuable tool for both DIY projects and professional plumbing applications.
Just remember to consider pressure ratings, follow installation instructions, and avoid over-tightening for a successful and long-lasting plumbing connection.
