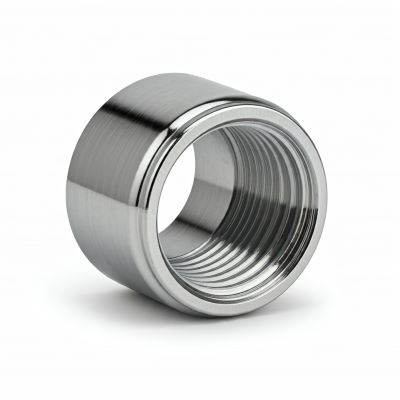

A 1/2 NPT end cap is a threaded fitting used to seal off the open end of a 1/2-inch National Pipe Thread (NPT) pipe. It provides a secure and reliable closure, preventing leaks and ensuring system integrity.
Why Proper Pipe Sealing Matters in Various Applications
Proper pipe sealing is crucial in numerous industries and applications. It stops leakage that might result in:
➡️ Safety hazards: Leaks of hazardous substances can pose serious risks to health and safety.
➡️ Property damage: Leaks can cause water damage, structural damage, and costly repairs.
➡️ Environmental concerns: Leaks of pollutants can harm the environment.
➡️ System inefficiency: Leaks can reduce the efficiency of systems by causing pressure loss and energy waste.
Overview: How 1/2 NPT End Caps Ensure System Integrity
1/2 NPT end caps, when installed correctly, create a secure seal between the pipe and the end cap. This prevents leaks and maintains the integrity of the piping system, ensuring optimal performance and safety.
Understanding 1/2 NPT
What Does 1/2 NPT Mean?
➡️ 1/2: This refers to the nominal pipe size, which is approximately 0.5 inches.
➡️ NPT: This stands for National Pipe Thread. NPT is a standard thread profile used in North America for pipe fittings.
➡️ Breaking Down the 1/2 NPT Thread Size
1/2 NPT threads have a specific pitch and taper that allow them to create a tight seal when properly assembled. The taper ensures that the threads engage progressively, creating a strong and leak-proof connection.
➡️ Understanding National Pipe Thread (NPT) Standards
NPT is a standard thread profile that is widely used in the United States and Canada. It is characterized by its tapered threads and its specific dimensions, which ensure compatibility with other NPT fittings.
➡️ How NPT Tapered Threads Create a Reliable Seal
The tapered threads of NPT fittings create a reliable seal by compressing the material between the threads as they are tightened. This compression helps to prevent leaks and ensure the integrity of the connection.
Key Features of 1/2 NPT End Caps
1/2 NPT end caps are available in various materials, including:
➡️ Brass: A common choice for general-purpose applications due to its corrosion resistance and machinability.
➡️ Stainless steel: Offers excellent corrosion resistance and durability, making it suitable for harsh environments.
➡️ Plastic: Lightweight and economical, but may have limitations in terms of temperature and pressure resistance.
Selecting the Appropriate Material for Your Particular Use
The choice of material for a 1/2 NPT end cap depends on factors such as:
➡️ The fluid or gas being handled: Some materials may be more resistant to specific chemicals or substances.
➡️ Temperature and pressure conditions: The end cap must be able to withstand the operating conditions of the system.
➡️ Environmental factors: If the system is exposed to corrosive environments, a more resistant material may be necessary.
➡️ Tapered vs. Straight Threads: What Sets NPT End Caps Apart
NPT end caps have tapered threads, which is a key feature that distinguishes them from straight-threaded fittings. The taper ensures a tight seal and prevents leaks.
➡️Threaded Design: How the 1/2 NPT End Cap Prevents Leaks
The threaded design of the 1/2 NPT end cap allows it to create a mechanical seal with the pipe. As the threads are tightened, they compress the material between them, creating a barrier that prevents leaks.
Benefits of Using 1/2 NPT End Caps
➡️ Leak Prevention: Achieving a Secure, Pressure-Tight Seal
1/2 NPT end caps are designed to provide a secure and pressure-tight seal, preventing leaks and ensuring the integrity of the piping system.
➡️ Corrosion Resistance: Ensuring Long-Term Durability
Many materials used for 1/2 NPT end caps, such as brass and stainless steel, offer excellent corrosion resistance, ensuring that the end cap will remain durable over time.
➡️ Versatility Across Different Piping Systems
1/2 NPT is a common pipe size used in various applications, making 1/2 NPT end caps versatile and suitable for a wide range of piping systems.
➡️ Cost-Effective Solution for Temporary and Permanent Sealing
1/2 NPT end caps are generally a cost-effective solution for both temporary and permanent sealing applications.
Common Applications for 1/2 NPT End Caps
➡️ Plumbing Systems: Sealing Open Pipe Ends to Prevent Water Damage
In plumbing systems, 1/2 NPT end caps are used to seal off open pipe ends, preventing water leaks and damage.
➡️ Industrial Pipelines: Protecting Unused Connections
In industrial pipelines, 1/2 NPT end caps are used to protect unused connections, preventing leaks and ensuring system safety.
➡️ HVAC Systems: Managing Airflow and Pressure in Ducting
In HVAC systems, 1/2 NPT end caps can be used to manage airflow and pressure in ducting.
➡️ Oil and Gas Operations: Containing Hazardous Fluids and Gases
In oil and gas operations, 1/2 NPT end caps are used to contain hazardous fluids and gases, preventing leaks and environmental hazards.
➡️ Laboratory Setups: Safeguarding High-Purity Piping Systems
In laboratory setups, 1/2 NPT end caps are used to safeguard high-purity piping systems, preventing contamination and ensuring accurate results.
Installation Best Practices for 1/2 NPT End Caps
➡️ Preparing the Threaded Surface: Cleaning and Deburring Techniques
Before installing a 1/2 NPT end cap, it is important to clean and deburr the threaded surface of the pipe. Leaks will be prevented and a good seal will be ensured.
➡️ Using the Right Tools: Wrenches, Sealant Tape, and Torque Guidelines
The correct tools are essential for installing a 1/2 NPT end cap. This includes wrenches of the appropriate size, sealant tape (if necessary), and a torque wrench to ensure proper tightening.
➡️ Proper Tightening: How Much Torque is Enough?
The amount of torque required to tighten a 1/2 NPT end cap will vary depending on the material of the pipe and the end cap. Refer to the manufacturer’s instructions or industry standards for specific torque guidelines.
➡️ Avoiding Over-Tightening: Preventing Thread Damage and Seal Failure
Over-tightening a 1/2 NPT end cap can damage the threads and compromise the seal. It is important to tighten the end cap to the recommended torque and avoid excessive force.
Also, read these resources: ⬇️⬇️⬇️
VCR Fitting: What It Is and Why It Matters
Typical Pressure on a Thread: Key Facts You Should Know
Troubleshooting Common Issues with 1/2 NPT End Caps
➡️ Identifying Leaks: Causes and Solutions for Seal Failures
If a leak occurs, it is important to identify the cause and take appropriate action. Common causes of leaks include:
➡️ Improper installation: Ensure that the end cap is properly tightened and that there are no damaged threads.
➡️ Damaged end cap: If the end cap is damaged, it may need to be replaced.
➡️ Pipe corrosion: Corrosion can weaken the pipe and lead to leaks.
➡️ Fixing Cross-Threading: How to Realign and Restore Threads
If the threads of the end cap or pipe are cross-threaded, they will need to be realigned before the end cap can be installed.
➡️ Dealing with Damaged Threads: When to Repair vs. Replace
If the threads of the end cap or pipe are severely damaged, it may be necessary to replace the damaged component. However, in some cases, it may be possible to repair the threads.
➡️ Signs of Material Fatigue: When End Caps Need Immediate Replacement
Over time, materials can experience fatigue, which can weaken the end cap and lead to failure. If you notice signs of material fatigue, such as cracks or pitting, the end cap should be replaced immediately.
Conclusion
1/2 NPT end caps are essential components in many piping systems, providing a secure and reliable seal. By understanding the key features, benefits, and applications of 1/2 NPT end caps, you can make informed decisions and ensure the optimal performance and longevity of your piping systems.
